Astra P/S Pump Wiring Kit

Astra Power Steering Pump Wiring Kit

P/N 120-1090

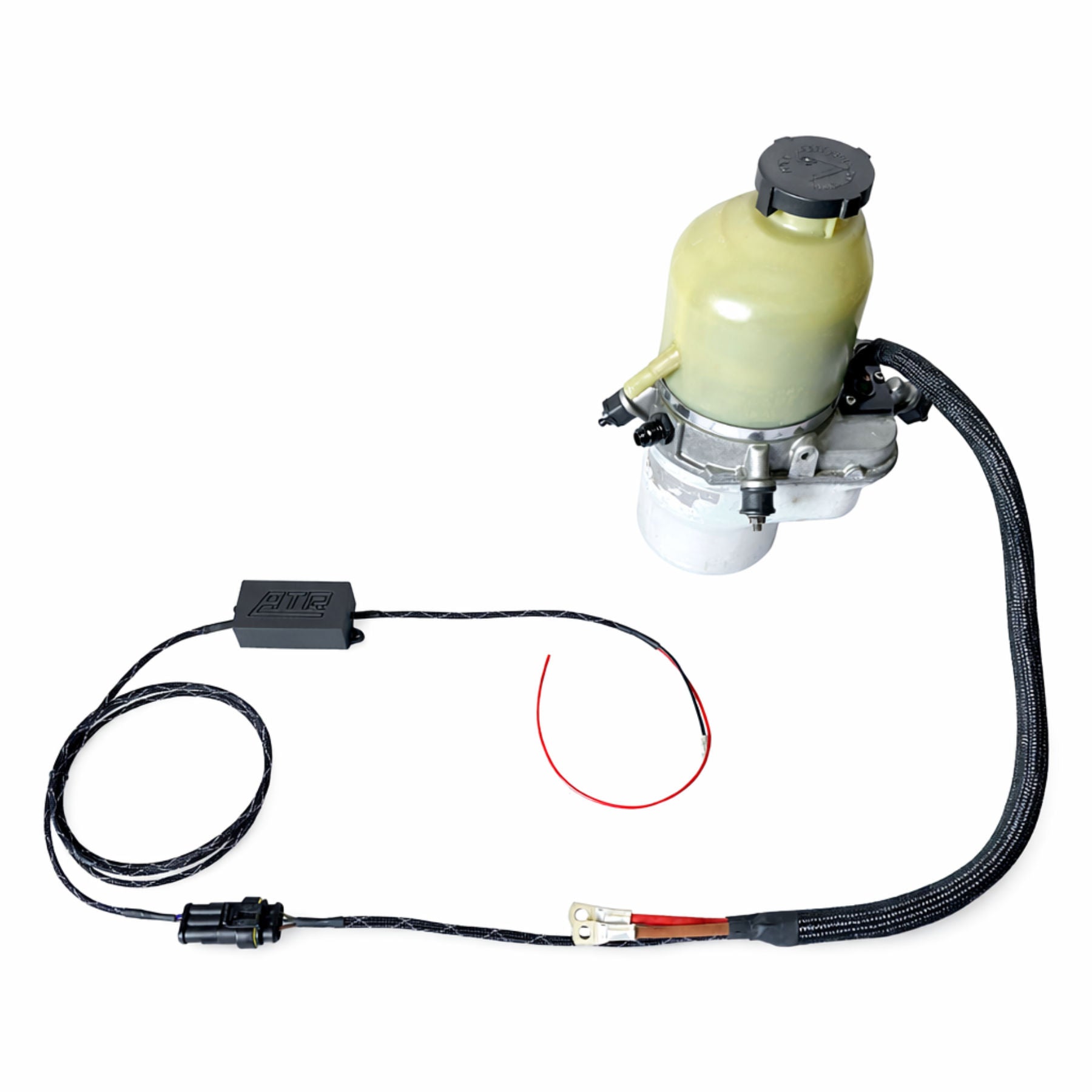

This kit is designed to streamline the installation of your Astra type 2 pump. The pump requires two trigger wires to initiate startup; however, if both signals are sent simultaneously, the pump will experience a slow startup. To address this, a relay module has been integrated into the harness. This ensures a properly timed sequence, delivering instant full pump pressure as soon as the ignition is switched.

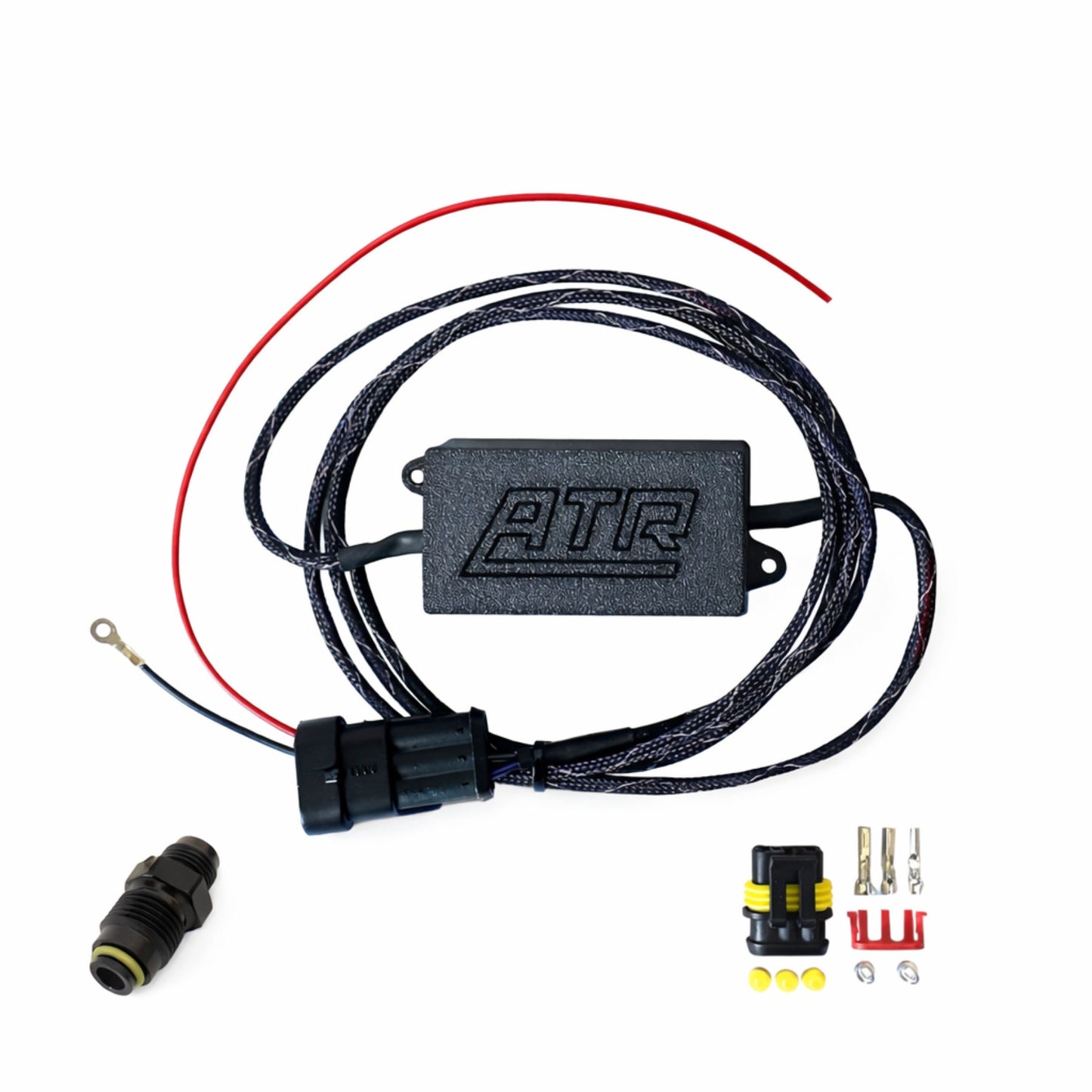

The harness comes pre-terminated for direct fit with the factory Astra connector and includes a spare male connector for situations where the pump plug is missing.

The Master Kit also includes a circuit breaker, lugs, and extra cable to ensure a complete and hassle-free installation.

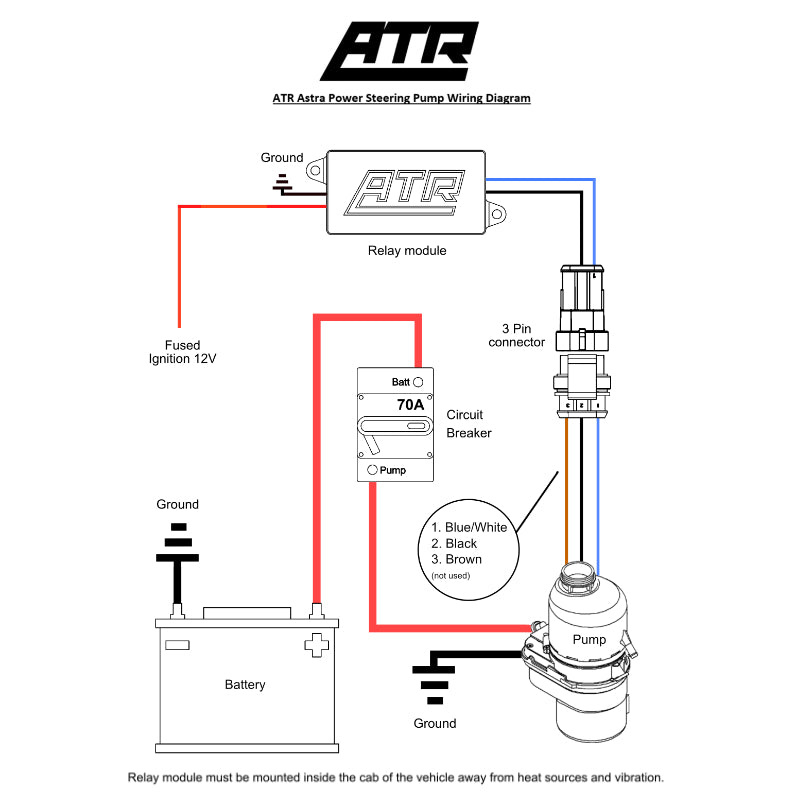

See TECH Page for Wiring Diagram

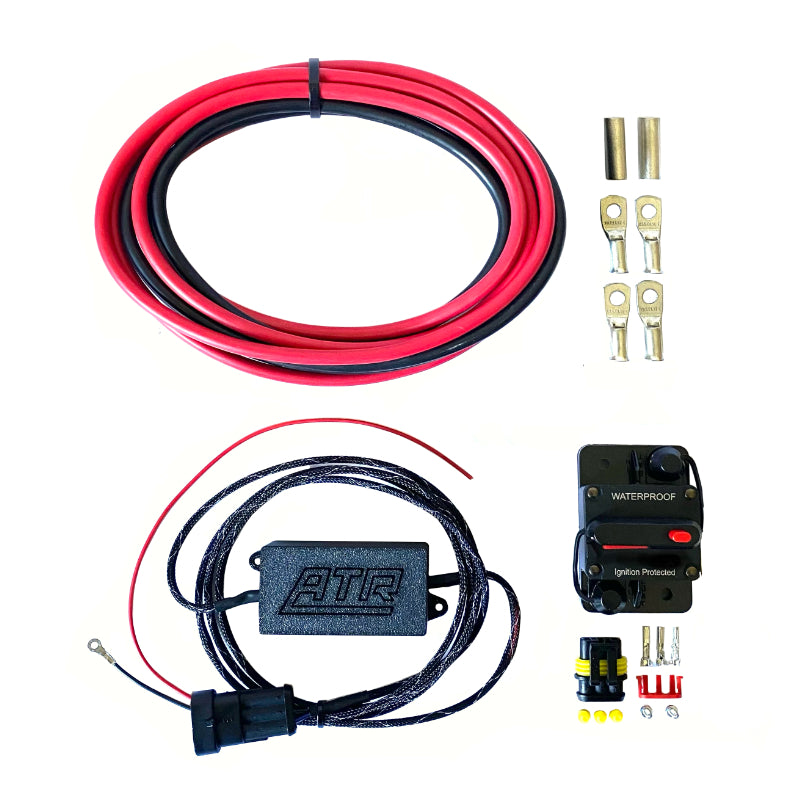

What’s in the box?

- Detailed Wiring Diagram

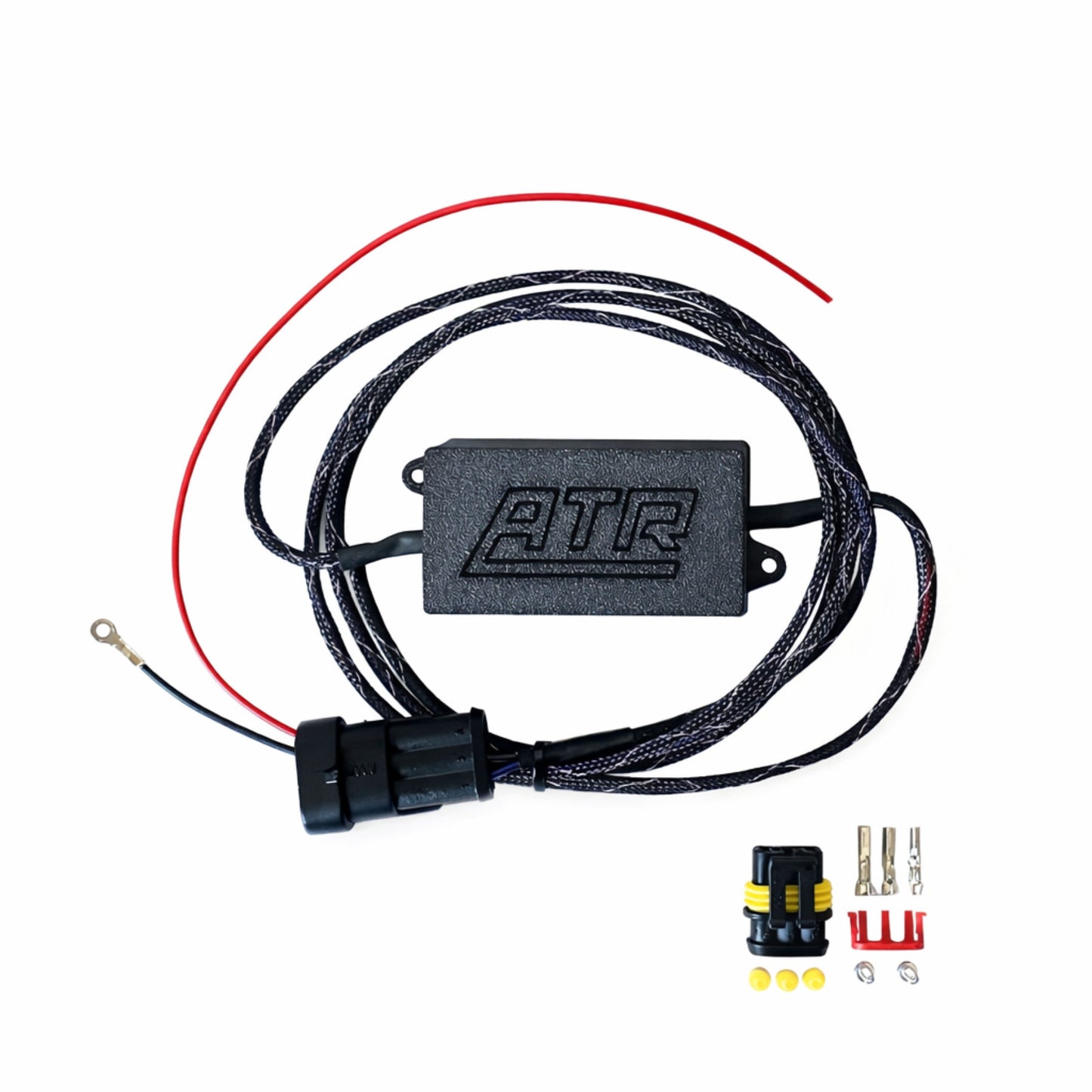

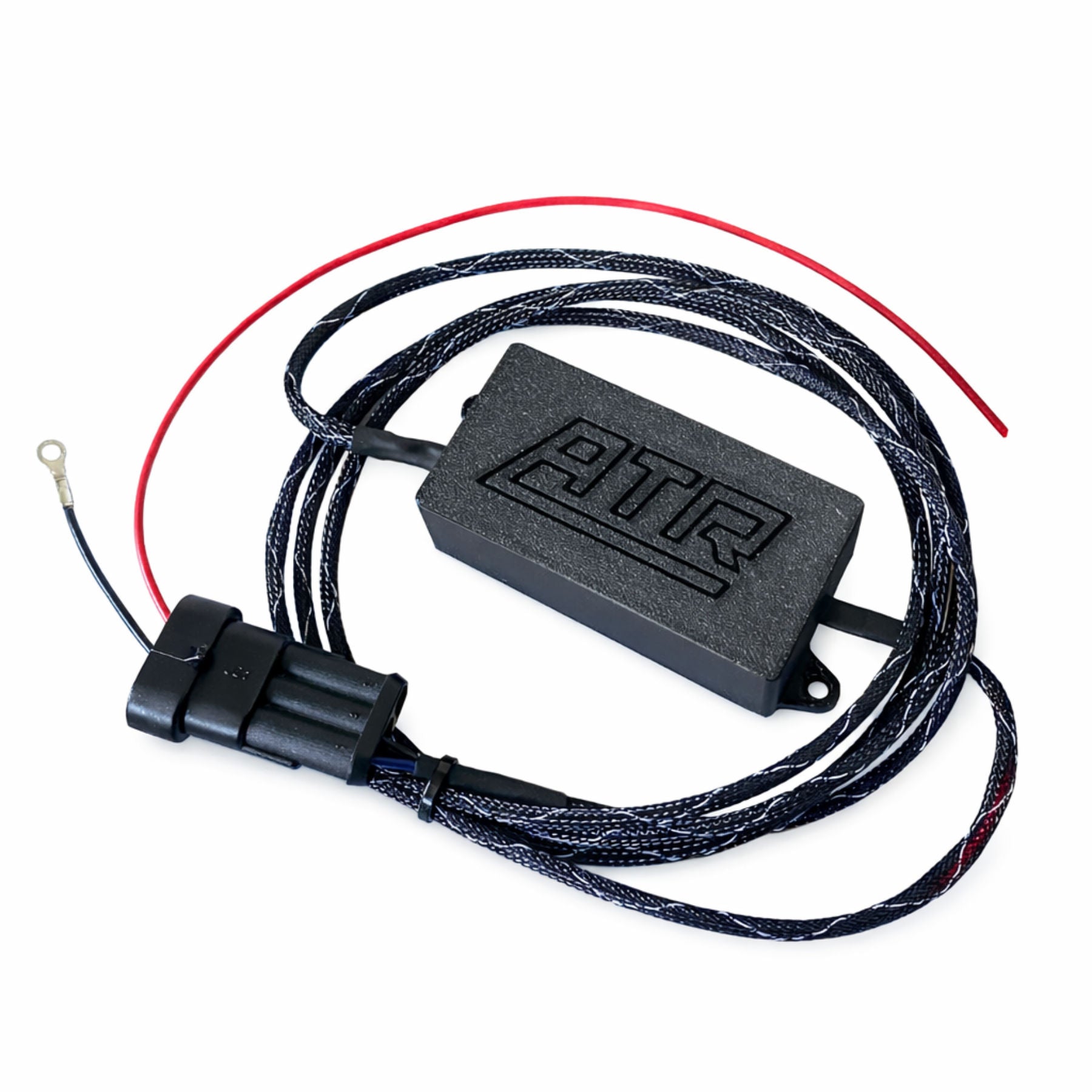

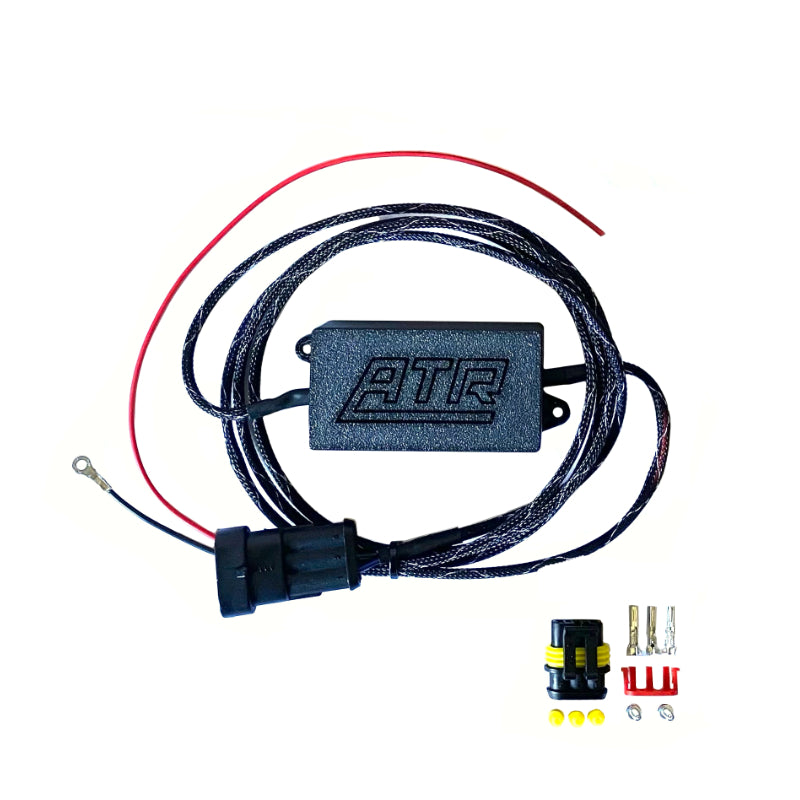

- Wiring Harness w/ module

- Connector/ Terminals

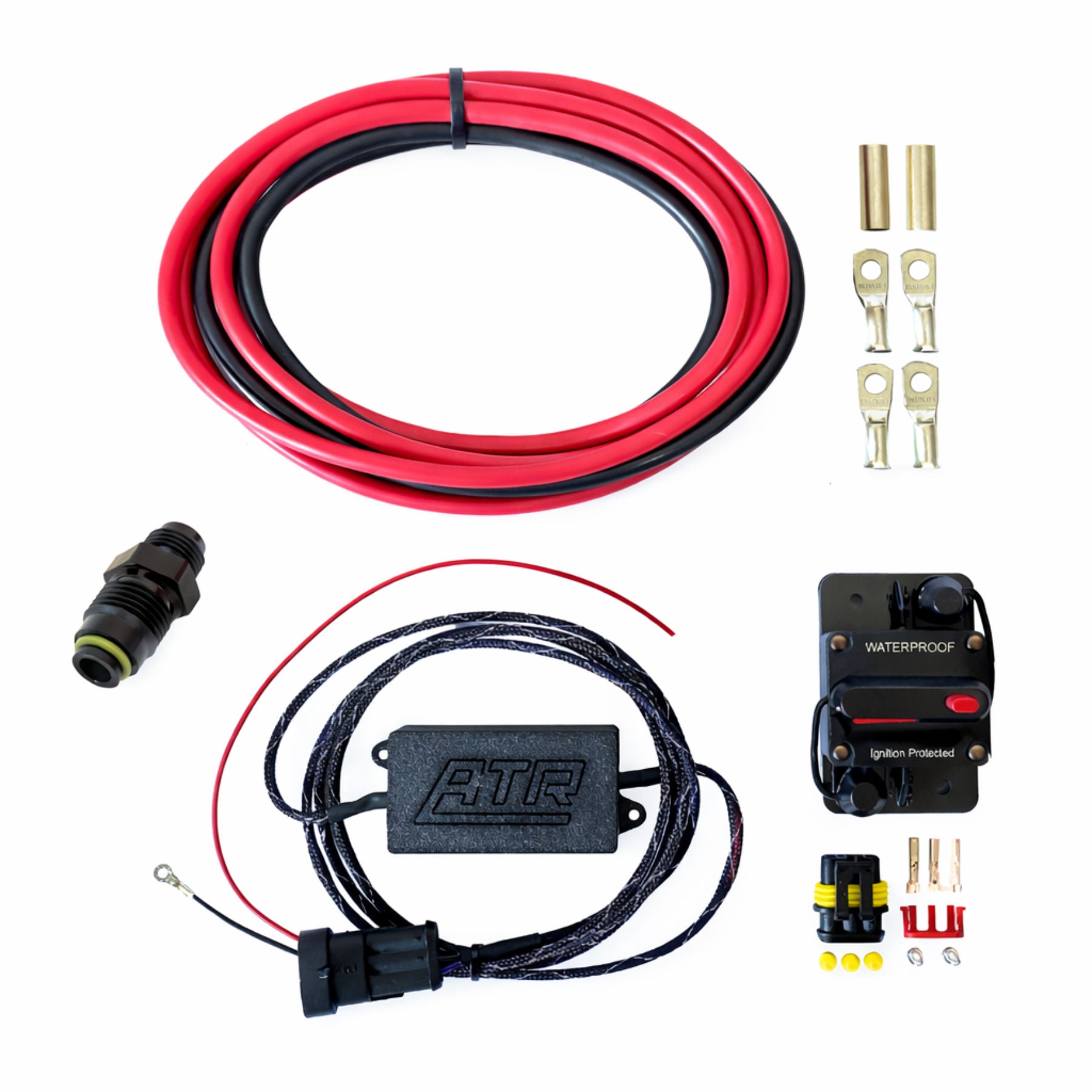

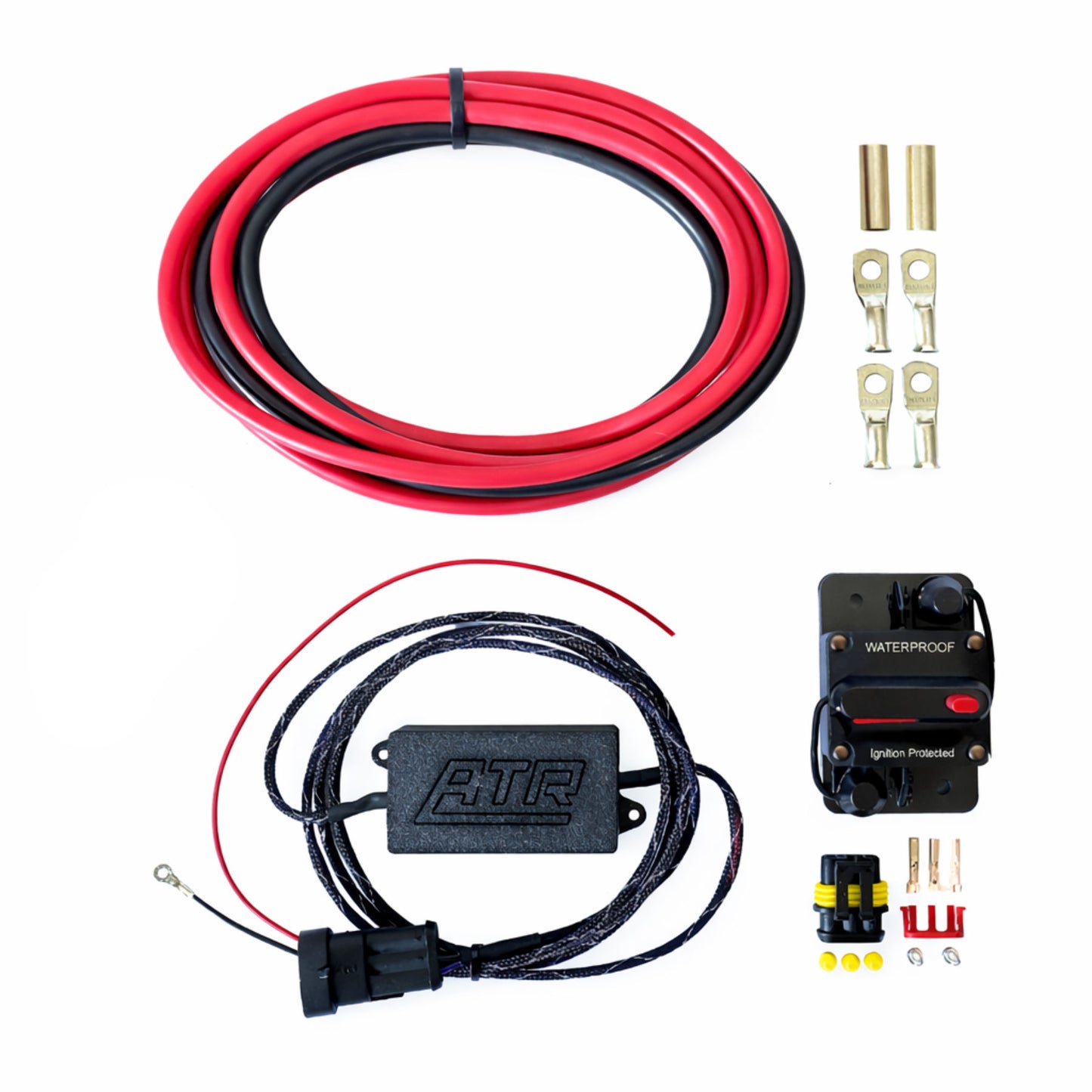

Optional Extras Master Kit:

- 2.5M Red 6 B&S cable

- .5M Black 6 B&S Cable

- Lugs

- 70 Amp circuit breaker
