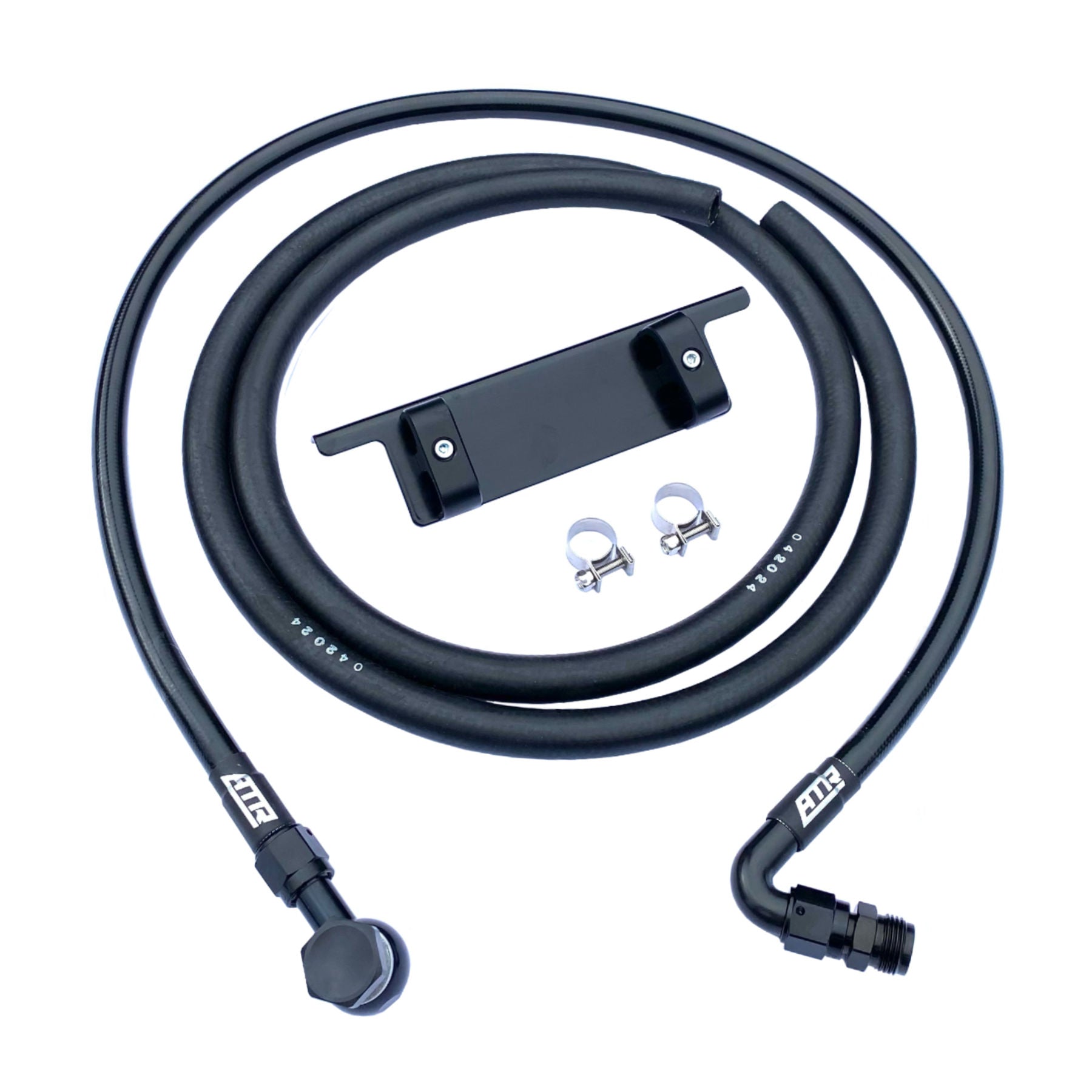

• HQ WB LS1 power steering lines kit including pressure hose, return hose, fittings and mounting bracket

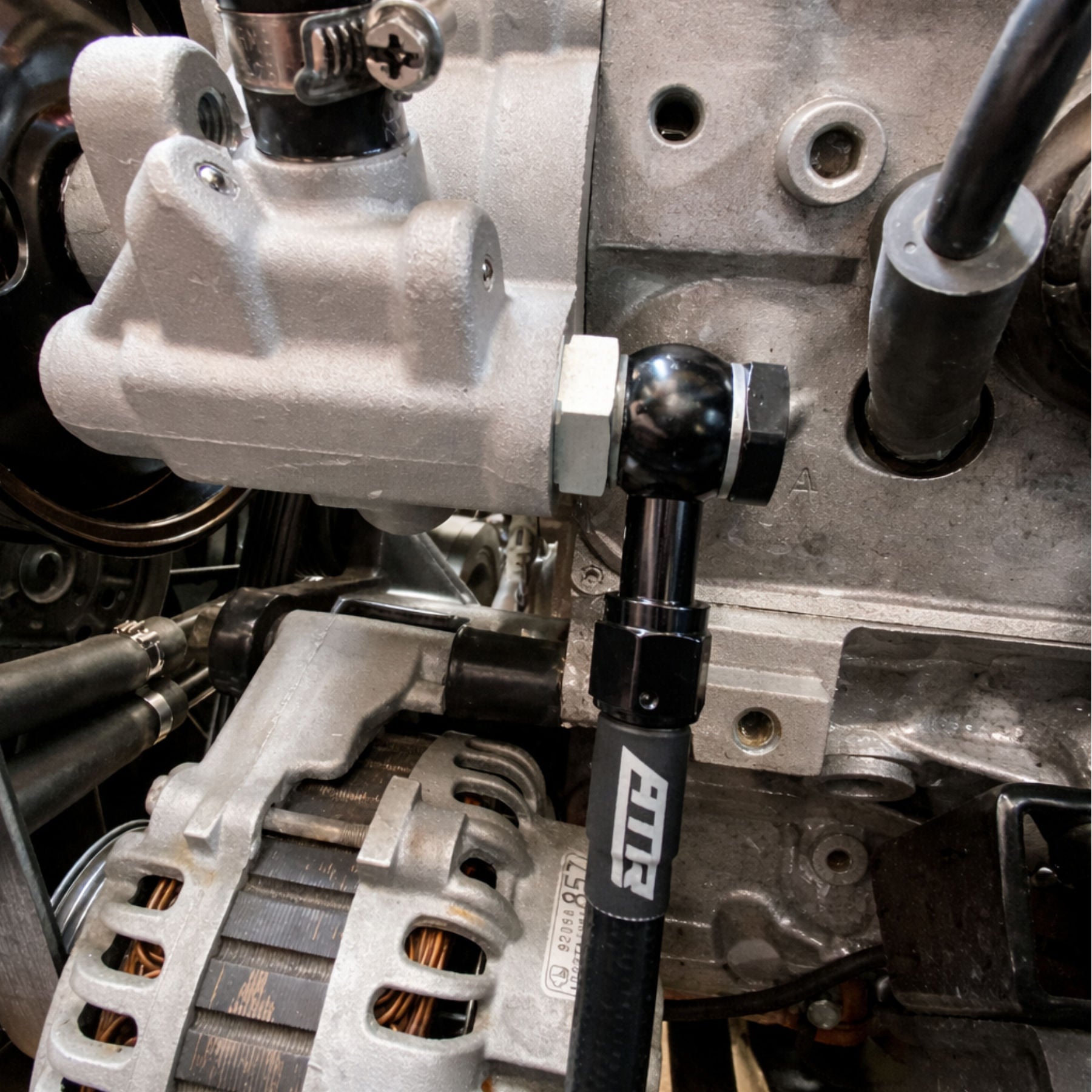

  • LS1 power steering line installed with AN fittings on engine

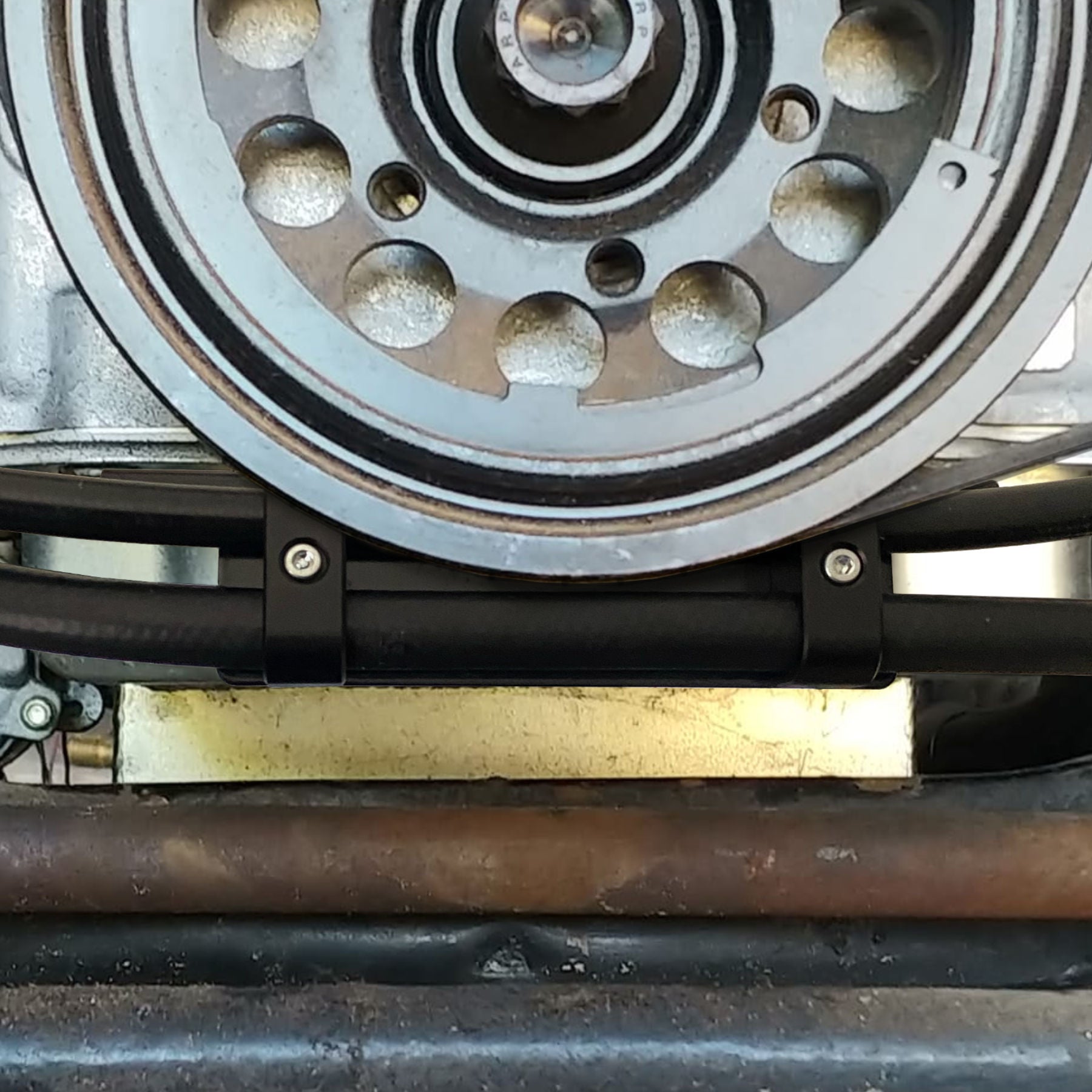

  • Power steering line bracket mounted under HQ LS1 showing hose routing

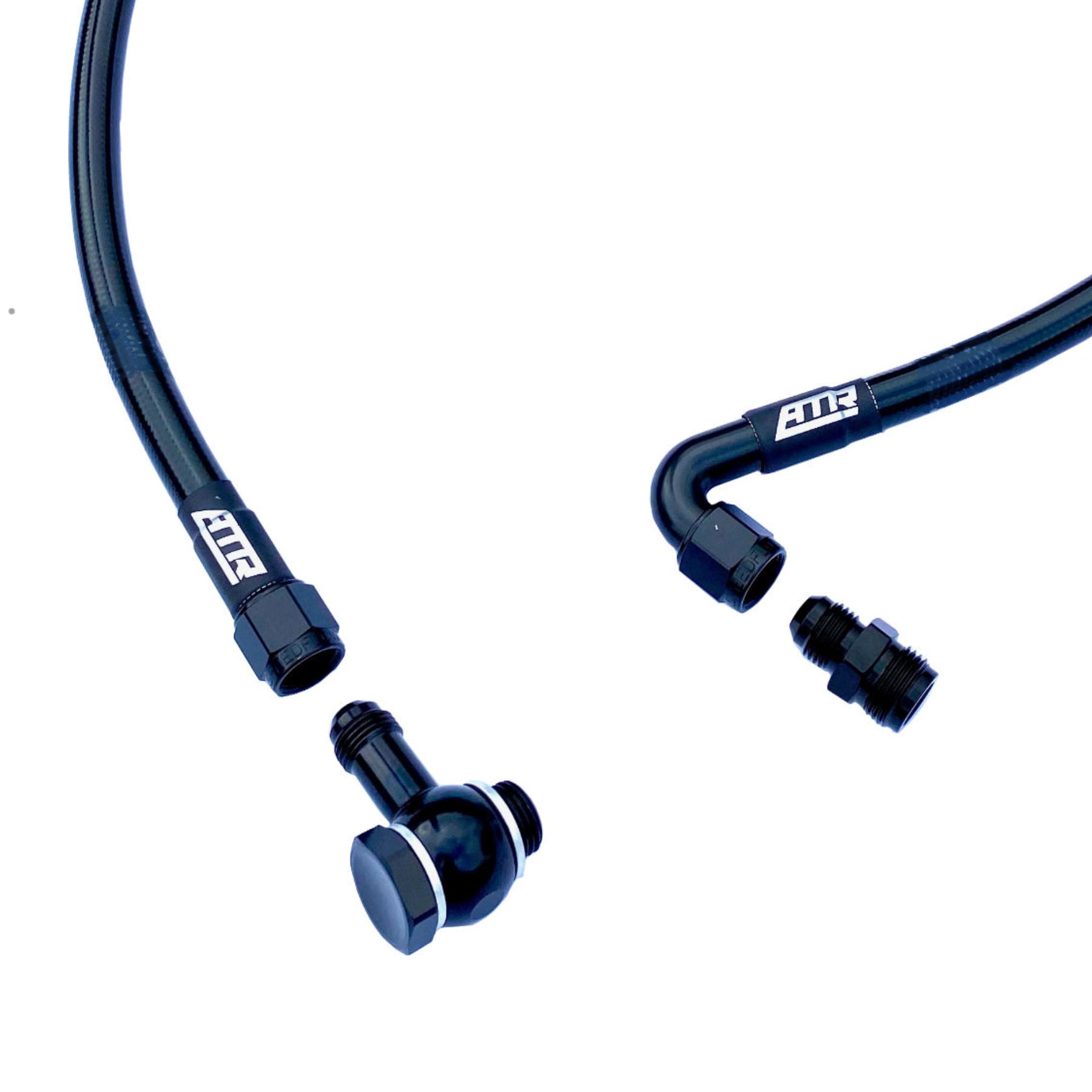

  • HQ–WB power steering lines to LS1 pump with AN fittings close-up showing banjo and 120-degree hose ends
1 4

ATR

HQ–WB LS1 Power Steering Lines – Factory Box

HQ–WB LS1 Power Steering Lines – Factory Box

$328 AUD
$328 AUD
Sale Sold out
Taxes included.

This kit is designed as a direct-fit solution for LS conversions in HQ–WB models, allowing you to adapt the LS1 mechanical pump to the factory power steering box.

Why It’s Needed
This kit provides a complete solution with proper hose routing and secure mounting, eliminating movement, abrasion, and guesswork during installation.

How It Works

The kit includes a high-pressure -6AN stainless steel braided hose with an anti-static PTFE (Teflon) liner, finished with a black PVC protective coating for durability and an OEM-style appearance.

A purpose-built mounting bracket with billet clamps securely locates the lines, with the bracket bolting directly to the sump for a factory-style mounting point, ensuring a clean and reliable installation.

Each hose is assembled using high-quality Speedflow components and professionally crimped, delivering maximum strength, leak-free performance, and long-term reliability.

Features

Factory-style, secure fit
Complete bolt-on kit
PTFE-lined -6AN hose
Crimped Speedflow fittings

What's in the box?

HQ-HZ

- High Pressure hose
- Return hose
- 1 x M16 Banjo + Bolt
- 1 x -06AN MALE to 11/16"-18 IS
- 2 x Hose clamp
- 1 x Sump Bracket

WB

- High Pressure hose
- Return hose
- 1 x M16 Banjo + Bolt
- 1 x M16 x 1.50 To -06AN
- 2 x Hose clamp
- 1 x Sump Bracket
